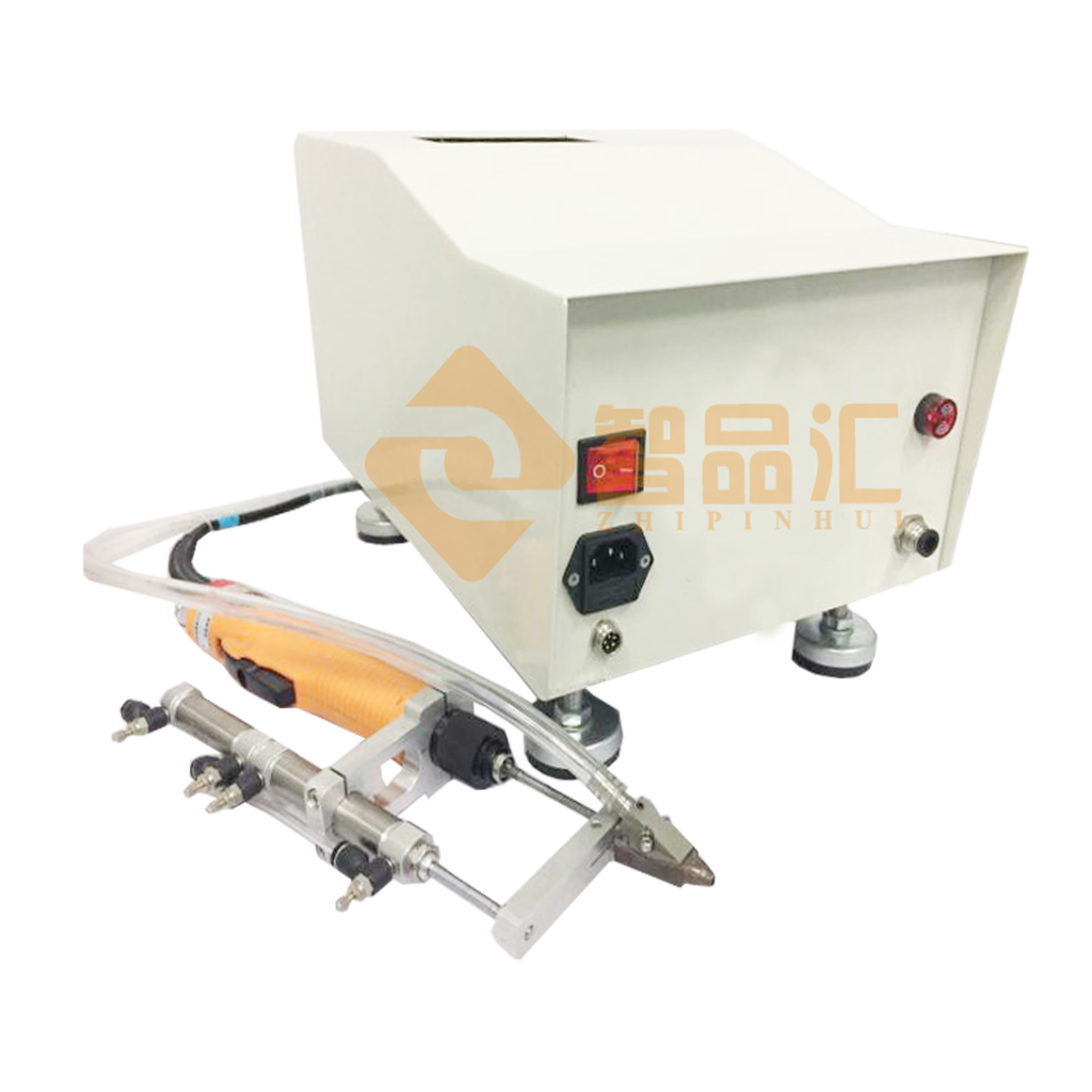

ZH-S101單節氣缸手持式螺絲機

智品價
¥11000
市場價
¥11000
規格分類
ZH-S101
顏色
灰白色單通道
材料
鋁合金機箱
配送
免費配送
數量
-
1
+
400-816-6687


ZH-S101單節氣缸手持式螺絲機Hand-held Screw Machine

功能特點Functions and characteristics
1.
螺絲范圍Screw range:M2-M5。
2.用的螺絲頭花型如:一字、十字、三角、梅花、內六角、H頭等。
Screw head pattern for use, such as: word, cross, triangle, plum, hexagon, H head, etc.
3.
用的螺絲材料如:鐵、銅、不銹鋼等。Screw materials such as iron, copper, stainless steel, etc.
4.
螺絲產品的材料如:塑膠、鐵、鋁等。Materials of screw products, such as plastic, iron, aluminum, etc.
5.
效率高,省成本: 鎖付速率可達到0.5秒1顆螺絲,比傳統擰緊效率提高1倍.省1個人。. High efficiency, cost saving: The locking rate can reach 1 screw for 0.5 seconds, which is 1 times higher than the traditional tightening efficiency. Can save 1 man laborer.
6.
更輕松,更質保: 左手無需取螺絲,可用于扶住產品;且可保持垂直鎖付,確保鎖付質量。 More relaxed, more quality assurance: The left hand does not need to take the screw, can be used to hold the product; and can maintain vertical lock pay, to ensure the quality of the lock.
7.
更清潔,更環保:不再直接接觸螺絲,避免手部接觸造成二次污染而生銹Cleaner, more environmentally friendly: no longer in direct contact with the screws, avoid contact with the hands causing secondary pollution and rust.
產品規格Product specification



型號Model

ZH-S101單節氣缸手持式螺絲機Hand-held screw machine

ZH-S201雙節氣缸手持式螺絲機Double-section Cylinder Hand-held Screw Machine

功率Power

30W

100W

輸送距離Delivery Distance

1-41-4 meters

0.5-20.5-2 meters

供料容量Feed Capacity

標準螺絲3000個Standard screws 3000

標準螺絲2000個Standard screws 2000

主要適用的螺絲孔Main screw hole

沉孔

平面Plane hole position

工作氣壓Working Pressure

4-6KGF/Cm2

電源Power supply

220V,50-60HZ

使用環境Use Environment

-20-40°C

批頭選型Batch Selection

滑套式、根據產品定Sleeve type, bracket type(According to product specification)

電批選型Electric Batch Type

標準臺灣奇力速電批 可按客戶要求Standard batch from Taiwan KILEWS(According to customer requirements)

螺絲規格Screw Specifications

一字、十字、梅花、內六角、三角、工字型Word, cross, plum, hexagon, triangle, I-shaped

適用行業Applicable Industry

通用性強Versatility, basically covers all products

設備兼容Equipment Compatible

公差0.5MM、長度5MM Tolerance 0.5MM, length 5MM

外形尺寸Dimensions

360*250*195MM





全部評價0

儀器售后政策:

*儀器保修期:一年

*售后電話:4008166687

我們提供部分設備的遠程安裝與調試,提供上門安裝維修服務,但收取一定的服務費;有基礎的我公司將免費提供技術指導,由需方調試安裝。


?
