首頁 > 自動化生產線設備 > 生產線自動焊錫機 > ZH-L401S轉盤立式環保型焊錫機

ZH-L401S轉盤立式環保型焊錫機

非標產品

配送

免費配送

預約

400-816-6687

商品詳情參數概況評價（0）售后保障

立即預約

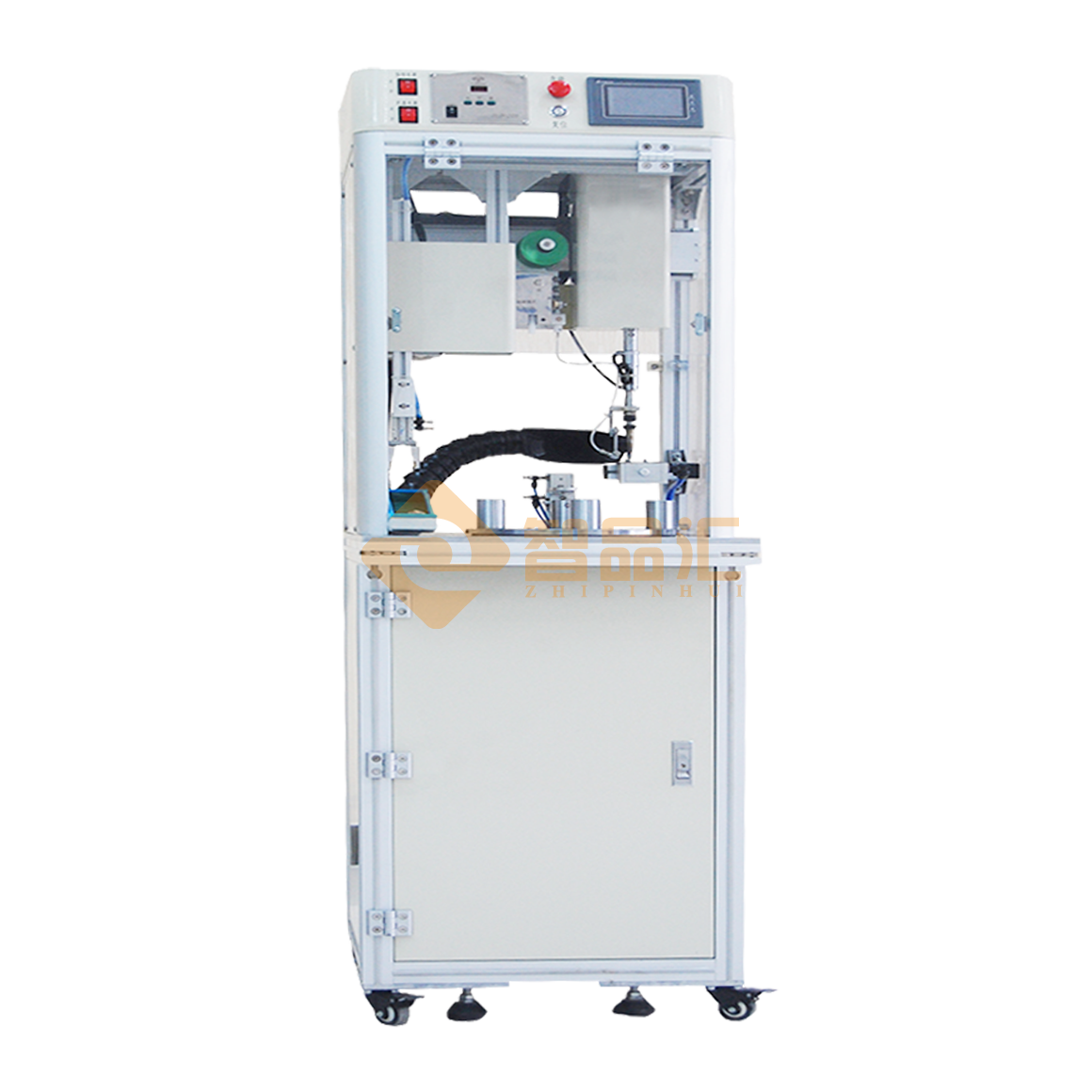

ZH-L401S轉盤立式環保型焊錫機Rotary Vertical Environmental Protection Type Soldering Robot

自動焊錫機 Automatic soldering machine	ZH-L401S
加工范圍 Processing range X/R1/Z/R2	根據需要定制 Customized as needed
R1軸平臺最大負載 R1-axis platform maximum load	30kg
X/Y/Z軸移動速度 X/Y/Z axis movement speed (mm/sec)	0-1000
XYZ軸重復精度 XYZ Axis Repeatability	<±0.02mm
編程方式 Programming method	示教盒/觸摸屏 Teaching box/Touch screen
控制方式 Control mode	日本基恩士PLC/焊錫機轉用控制器 Japan Keyence PLC/Solder Diversion Controller
馬達系統 Motor system	步進級精密馬達 Stepping precision motors
傳動方式 Transfer method	進口同步帶+ HIWIN精密直線導軌 Imported synchronous belt + HIWIN precision linear guide rail
焊臺功率 Soldering station power	大功率150W High power 150W
溫度范圍 Temperature range	0-500°
自動破錫器 Automatic tin-breaker	送錫精準.百分百破錫. Send tin precisely. 100% tin break.
適用錫絲 Applicable tin wire	0.6-1.2MM
專利型真空吸洗機構 Patented vacuum suction mechanism	錫渣回收方便 Tin slag is easily recycled
錫煙處理 Tin smoke treatment	工業抽煙過濾器 Industrial smoke filter
輸入電源 Input power	AC220V(內部開關轉換 Internal switch conversion)
外形尺寸 Dimensions	L600W500H1800
機器重量 Machine weight	100KG

功能特點Functional characteristics

1.4工位轉盤工位連續循環工作，根據加載自動上料和下料機構，實現一只流作業。The four-station turntable work station continuously circulates, and according to the loading automatic feeding and discharging mechanism, one flow operation can be realized.

2.工業自動破錫機構，精準送錫Industrial automatic tin-breaker, delivery tin accurately.

3.內設堵錫、卡錫、無錫線檢測功能It is equipped with tin plug, tin stuck and tin line detection function.

4.專利型真空清洗烙鐵頭機構,對機器清潔或錫渣回收更大提高。The patented vacuum cleaning iron head mechanism to make the machine cleaning or tin slag recovery capability is greatly improved.

5.焊錫錫煙可以根據通過管道排放或直接過濾，避免因焊錫工長期吸入焊錫煙霧而引起職業病。Solder tin smoke can be eliminated through the pipeline or directly filtered to solve occupational diseases in soldering jobs.
