首頁 > 自動化生產線設備 > 生產線自動焊錫機 > ZH-5331R2臺式雙烙鐵焊錫機

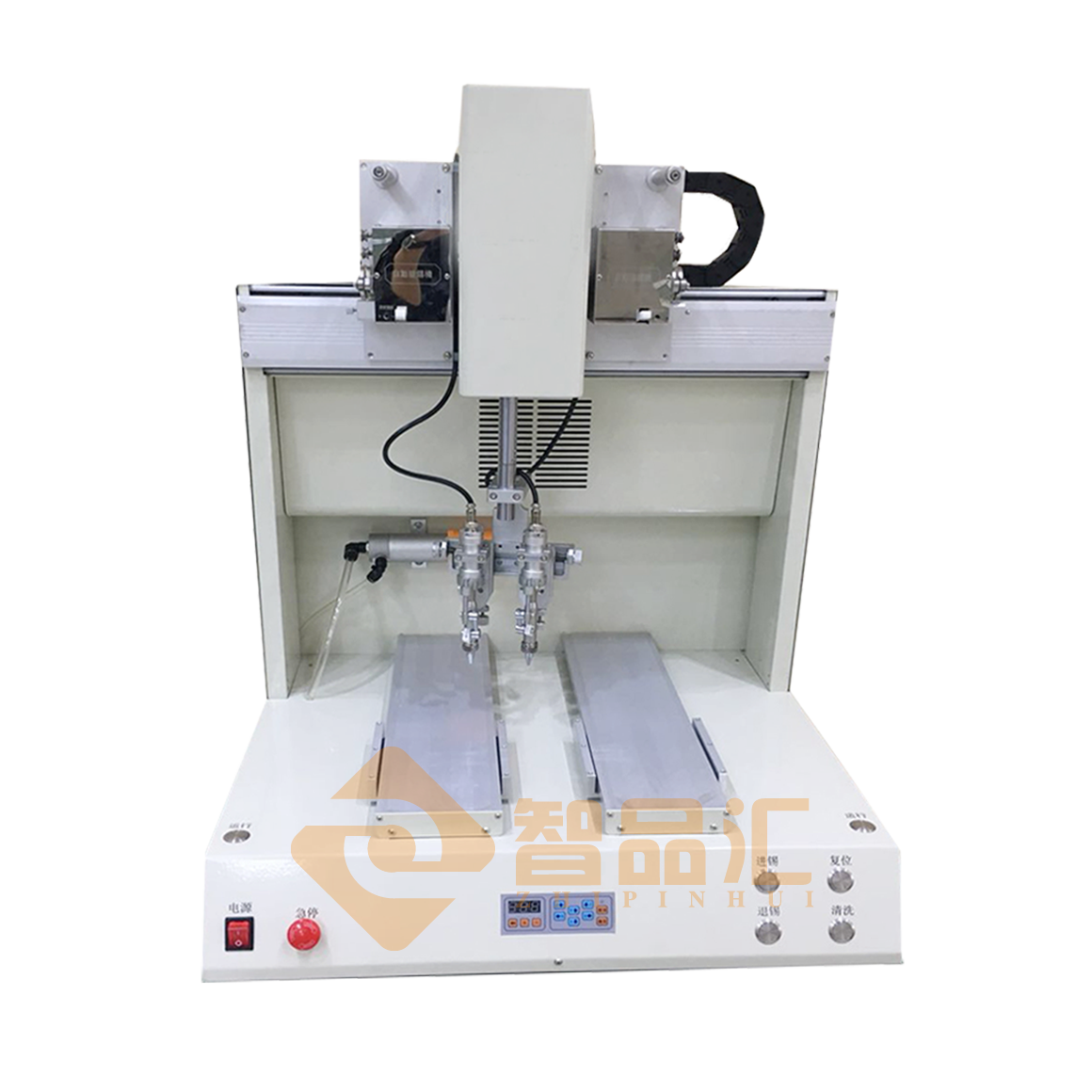

ZH-5331R2臺式雙烙鐵焊錫機

非標產品

配送

免費配送

預約

400-816-6687

商品詳情參數概況評價（0）售后保障

立即預約


ZH-5331R2臺式雙烙鐵焊錫機Desktop Double Iron Soldering Machine

焊錫機器人Soldering Robot	ZH-5331R2 精準5軸雙頭焊錫機Precision 5-axis double head soldering machine
加工范圍Processing range X/Y1/Y2/Z/R	500mm/300mm/300mm/100mm/<320°(customizable)
Y軸平臺最大負載Y-axis platform maximum load	15KG
X/Y/Z軸移動速度X/Y/Zaxis movement speed (mm/sec)	0-1200
XYZ軸重復精度XYZ Axis Repeatability	<±0.02mm
控制方式Control mode	工業控制卡Industrial Control Card
編程方式Programming method	示教盒Teaching box
程序記錄容量Program recording capacity	1000個程序1000 programs
馬達系統Motor system	步進級精密馬達Stepping precision motors
傳動方式Transfer method	進口同步帶+ HIWIN精密直線導軌Imported synchronous belt + precision linear guide rail
焊臺功率Soldering station power	大功率150W High power 150W
溫度范圍Temperature range	0-500°
自動破錫器Automatic tin-breaker	送錫精準.百分百破錫. Send tin precisely. 100% tin break.
適用錫絲Applicable tin wire	0.6-1.2MM
專利型真空吸洗機構Patented vacuum suction mechanism	錫渣回收方便Tin slag is easily recycled
錫煙處理Tin smoke treatment	抽煙系統Extraction System
輸入電源Input power	AC220V(內部開關轉換) AC220V(Internal switch conversion)
工作環境溫度Working temperature	5-40℃
外形尺寸Dimensions	L580W660H830
機器重量Machine weight	70KG

功能特點Functional characteristics

1、雙焊頭同時焊接，比單頭效率增加2倍，雙Y 連續交換工作，減少上下料等待時間。Double welding head welding at the same time, double the efficiency of the single head, double Y continuous exchange work, reduce loading and unloading waiting time.

2、工業自動破錫機，精準送錫。Industrial automatic tin-breaker, delivery tin accurately.

3、內設堵錫、卡錫、無錫線檢測功能。It is equipped with tin plug, tin stuck and tin line detection function.

4、專利型真空清洗烙鐵頭機構,解決傳統吹氣清洗所造成烙鐵頭上的殘錫無法清洗干凈而產生焊接不良或是焊點污穢，對機器清潔或錫渣回收更大提高。The patented vacuum cleaning iron head mechanism.

5、最新卡式定位或基子定位設計,拆裝容易,而且不會因?yàn)楦鼡Q烙鐵頭而使位置移動。The latest card positioning or base positioning design, easy assembly and disassembly, and will not be due to change the position of the iron head and move.
